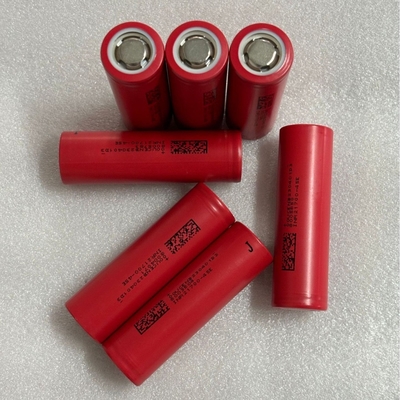

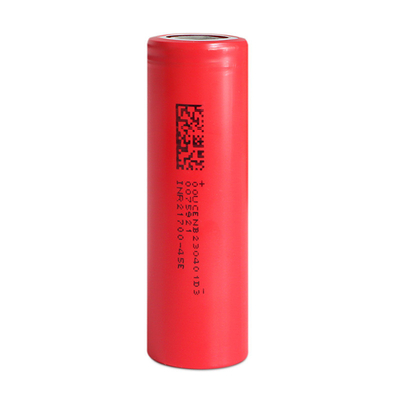

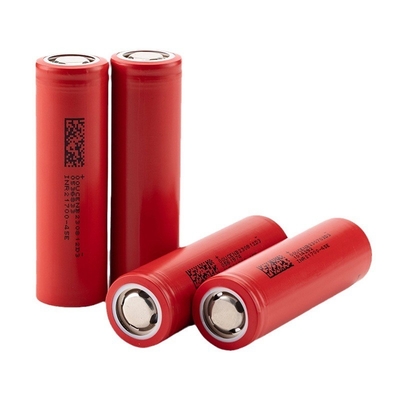

3C 4500mAh 21700 Baterai Lithium Ion Silinder INR21700-45E Untuk Mobil Motor Listrik
| Battery Type: | Baterai ion litium 21700 | Nominal Capacity (Typical): | 4500 mAh 0.2C |
| Nominal Capacity （Minimum）: | 4350mAh 0,2C (1C = 4350mA) | Nominal Voltage: | 3.7V |
| Charging Voltage: | 4.2V | Discharge Cut-off Voltage: | 2.5V |
| Max Charge Current: | 1C (bukan untuk siklus) | Max Continuous Discharge Current: | 3C (bukan untuk siklus) |
| Cell Dimension: | Ketinggian: 70,75 mm (maks); Diameter: 21,5 mm (maks) | Weight: | ＜76g |
| Cycle Life: | +0,5C/-1C Batas (800)/Batas(Av10)≥80% | Warranty: | 1 tahun |
| High Light: | Baterai ion lithium silinder 3,7V 4500mah,Baterai lithium ion 4500 mah |
||
3C 4500mAh 21700 Baterai Lithium Ion Silinder INR21700-45E Untuk Mobil Motor Listrik
Deskripsi dan Model
Deskripsi: Cell ((Sel lithium-ion silinder)
Model: INR21700-45E
Situs: Diproduksi di Zhejiang, Cina
INR21700-45E 4500mAh Keuntungan
1) Sel: Sel kelas A untuk memastikan baterai dalam kapasitas tinggi dan penuh,
2) kepadatan energi tinggi,
3) Low self-discharge,
4) Resistensi internal yang rendah,
5) Hidup siklus panjang, lebih dari 1000 kali,
6) Sertifikasi: UL, CE, CB, UN38.3, MSDS,...
Spesifikasi Nominal INR21700-45E 4500mAh
| Model | INR21700-45E |
|
Kapasitas Nominal (Tipikal) |
4500mAh@0.2C |
|
Kapasitas Nominal (minimal) |
4350mAh@0.2C (1C=4350mA) |
| Tegangan Nominal | 3.7V |
| Tegangan Pengisian | 4.2V |
| Metode Pengisian Standar | CC-CV ((0.5C,4.2V,0.05C batas) |
| Metode Pembuangan Standar | CC(0.2C,2.5V) |
| Tegangan pemotongan debit | 2.5V |
| Max Charge Current (Arus muatan maksimum) | 1C (tidak untuk sepeda) |
| Maksimum arus pelepasan terus menerus | 3C (tidak untuk sepeda) |
| Resistensi Dalam | < 30mΩ (ACIR) |
| Siklus Kehidupan | +0,5C/-1C Cap ((800th) /Cap ((Av10) ≥80% |
|
Lingkungan Operasi (suhu permukaan) |
Muat, 0°C ~ 50°C |
| Pengeluaran, -20°C~80°C | |
| Berat badan | < 76 g |
| Dimensi Sel | Ketinggian: 70,75 mm (maks); Diameter: 21,5 mm (maks) |
| Lingkungan penyimpanan | 1 tahun: -20~25°C ≤70%RH |
| 3 bulan: -20~45°C ≤70%RH | |
| 1 bulan: -20~55°C ≤70%RH | |
|
Dimensi garis besar:
|
|
|

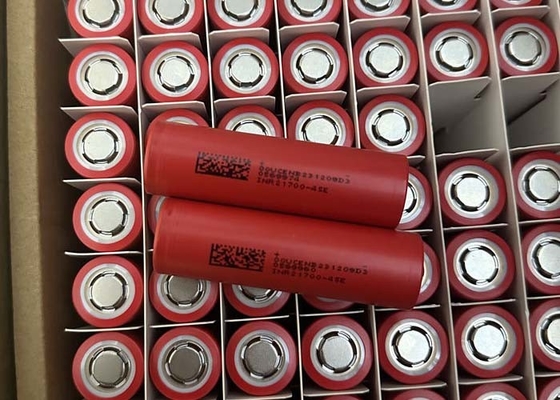

Paket:
|
|
Aplikasi INR21700-45E 4500mAh
| Karakteristik baterai lithium-ion silinder adalah kepadatan energi yang tinggi, umur panjang, pembuangan diri yang rendah, pengisian cepat, keamanan yang baik dan kemampuan beradaptasi, oleh karena itu, baterai lithium-ion digunakan secara luas dalam alat listrik,kendaraan listrik, produk elektronik portabel dan bidang lainnya. |
Pelayanan Kami
1) profesional baterai lithium ion paket pemasok selama lebih dari sepuluh tahun, dan memiliki pabrik kami sendiri,
2) Tim R & D yang kuat untuk mendukung,
3) Menawarkan layanan OEM / ODM untuk pesanan pelanggan,
4) Tanggapan dan tindakan cepat,
5). Harga yang kompetitif, penjualan yang baik dan layanan purna jual.
