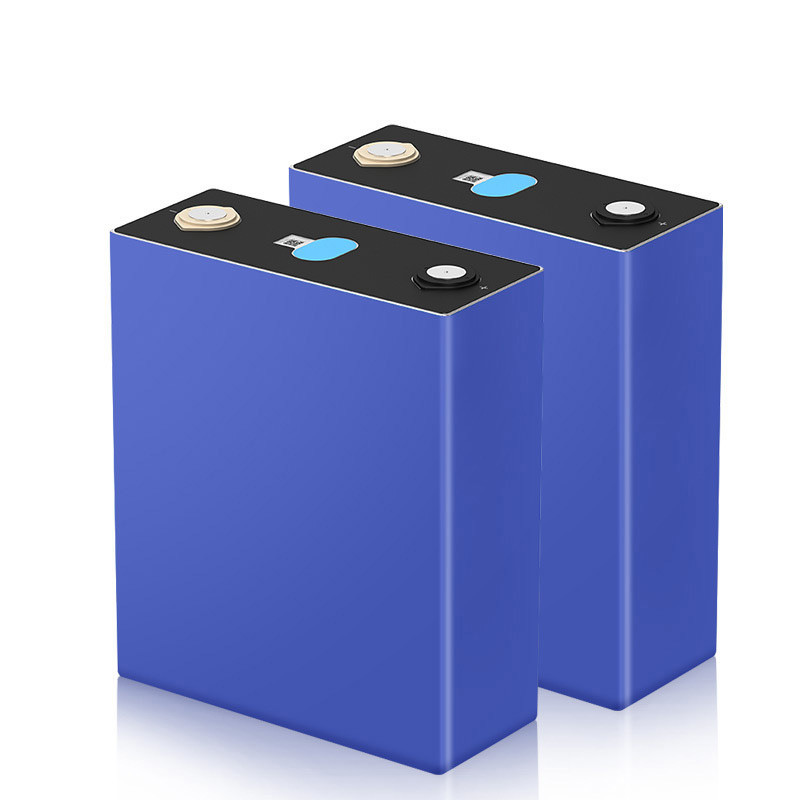

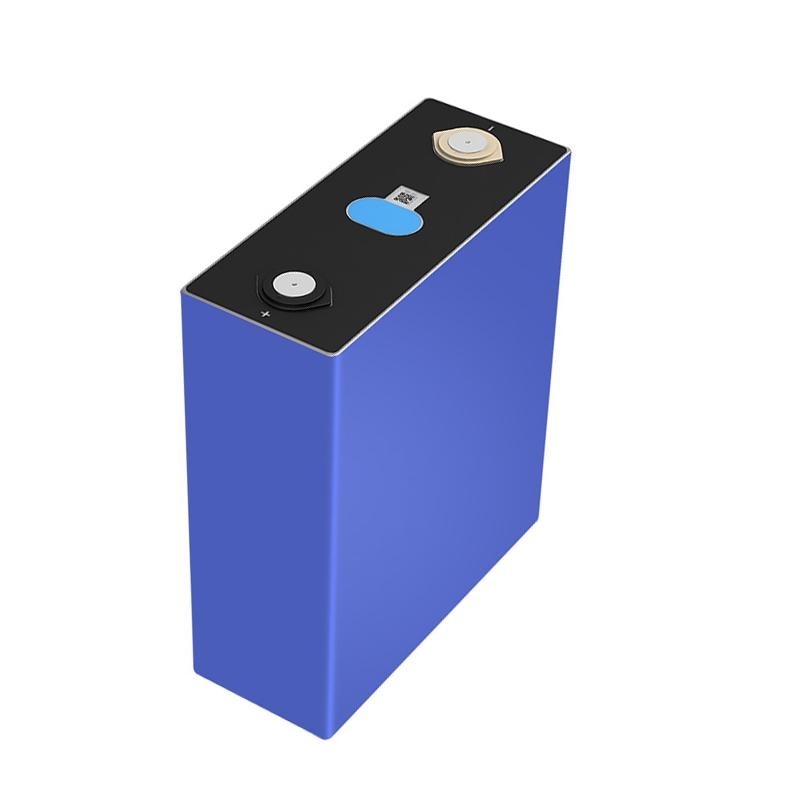

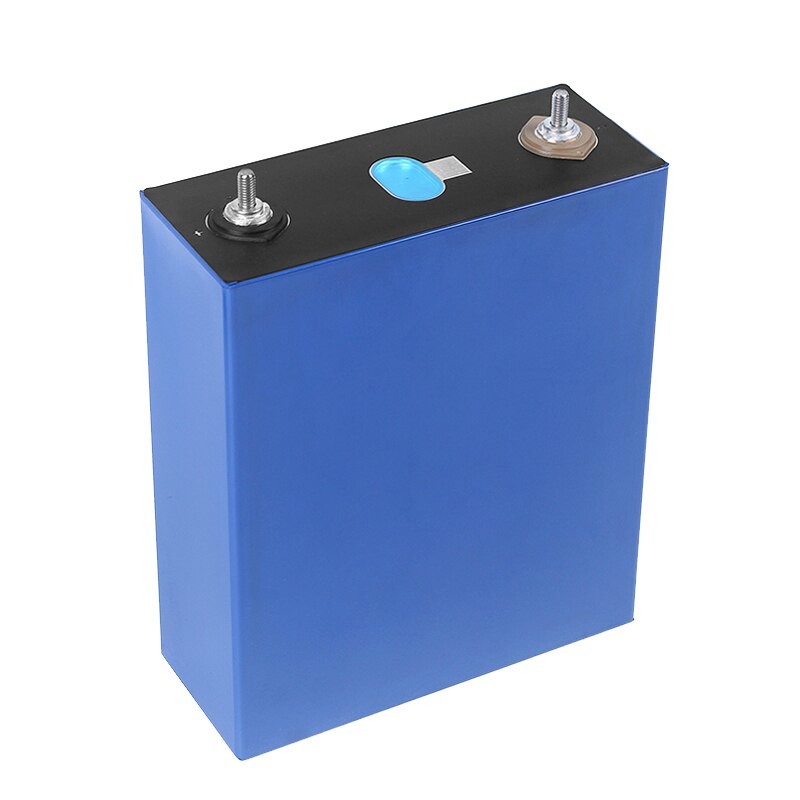

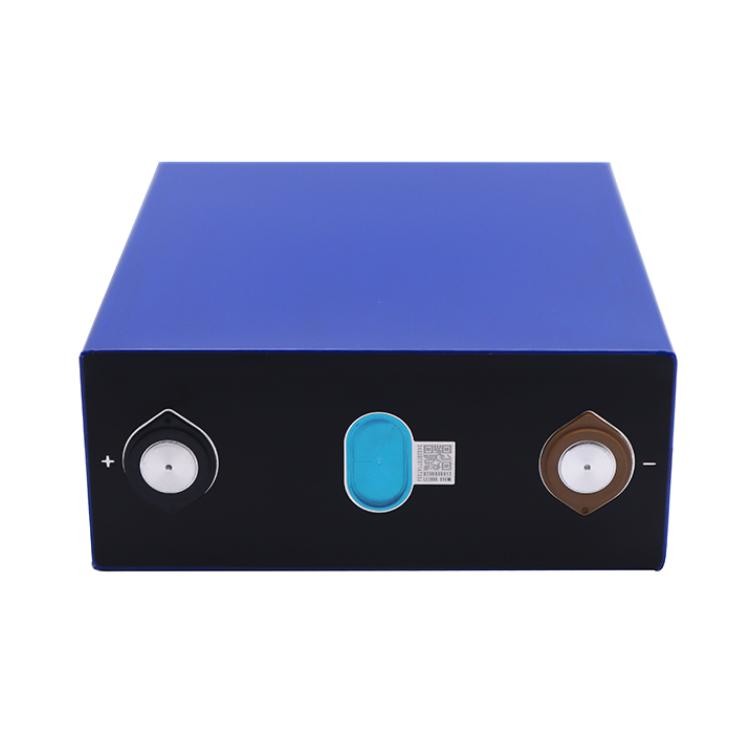

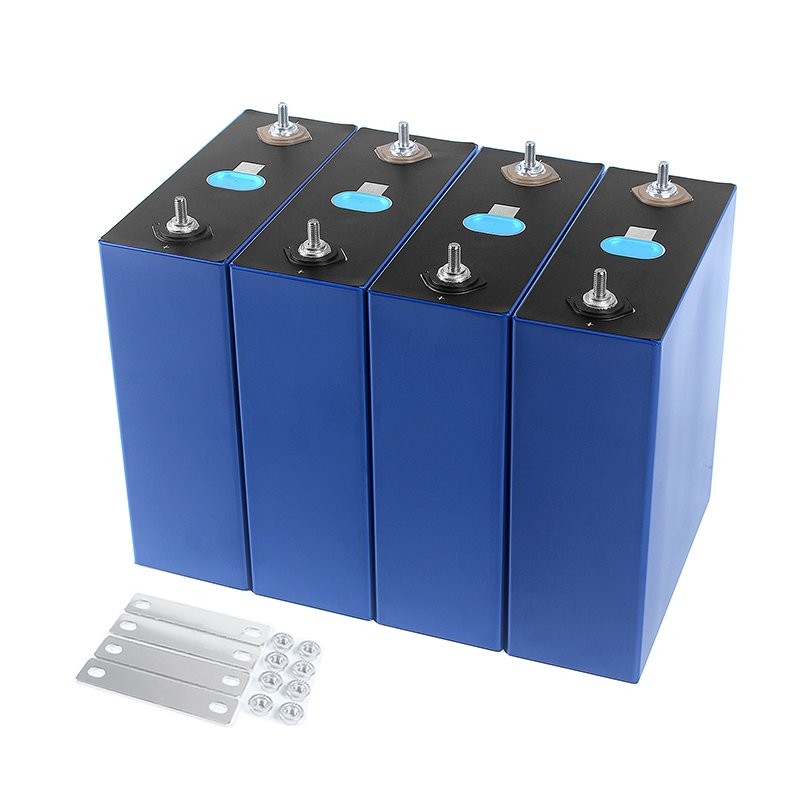

EVE LF304 3.2V 304Ah LiFePO4 Baterai Cell Prismatic LFP Cell
| Battery Type: | Baterai Litium Besi Fosfat | Nominal Capacity: | 304Ah |
| Nominal Voltage: | 3.2V | End-off-charge Voltage: | 3.65V |
| Standard Charging Current: | 152A | Weight: | 5450 gram ± 164 gram |
| Initial IR: | 0,16mΩ ± 0,05mΩ | Nominal Energy: | 972,8 jam |
| High Light: | Siklus Panjang Sel Baterai LiFePO4,3.2V 304AH Lifepo4 Baterai Cell,Sel LFP Prismatik Berkekuatan Lama |
||
EVE LF304 3.2V 304Ah LiFePO4 Baterai Sel Siklus Panjang Prismatik LFP Cell
EVE LF304 304Ah LiFePo4 Baterai Deskripsi
|
Sel baterai EVE LF304 3.2V 304Ah LiFePO4 adalah sel litium besi fosfat prismatik berkapasitas tinggi yang dirancang untuk siklus hidup yang panjang.dan penyimpanan energi yang efisien, membuatnya ideal untuk aplikasi dalam sistem energi terbarukan, kendaraan listrik, dan solusi daya cadangan.Umur panjang dan kinerja yang dapat diandalkan memastikan pengelolaan energi yang optimal dalam berbagai pengaturan. |
EVE LF304 304Ah LiFePo4 Baterai Parameter
| Artikel | Spesifikasi |
| Kapasitas Nominal | 304.0 Ah |
| Energi Nominal | 972.8 Wh |
| Tegangan Nominal | 3.2 V |
| Berat badan | 5450 g ± 164 g |
| Tegangan akhir-off | 3.65 V |
| Tegangan pembuangan akhir | 2.5 V (T > 0°C) 2.0 V (T ≤ 0°C) |
| arus pengisian standar | 152 A |
| Arus muatan instan maksimum | 2C |
| Standar arus pembuangan | 152 A |
| Arus Pelepasan Seketika Maksimum | 3C |
| IR awal | 0.16 mΩ ± 0,05 mΩ |
| Resistensi arus searah (DCR) | ≤ 1,2 mΩ |
| Dimensi (Dengan film isolasi) | Tinggi terminal: 207,20 mm ± 0,50 mm |
| Ketinggian atas kaleng: 204,40 mm ± 0,50 mm | |
| Panjang: 173,70 mm ± 0,50 mm | |
| Ketebalan: 71,70 mm ± 0,80 mm | |
| Jarak pusat antara kutub: 123,00 mm ± 0,30 mm | |
| Suhu Operasi | Suhu pengisian: -10°C ~ 65°C |
| Suhu pembuangan: -35°C~65°C | |
| Suhu penyimpanan | 3 bulan 0°C ~ 35°C |
| 1 bulan -20°C ~ 45°C | |
| Siklus Kehidupan | 4000 siklus, 80% SOH, 25°C |
| 2000 siklus, 80% SOH, 45°C | |
|
|
Aplikasi Baterai EVE LF304 304Ah LiFePo4
| Penyimpanan energi terbarukan, kendaraan listrik (EV), sistem tenaga cadangan (UPS), peralatan industri (forklift, pallet jack), telekomunikasi (menara telekomunikasi, pusat data),Aplikasi Laut (Kapal), Yacht), Dukungan Grid Listrik, Sistem Penyimpanan Energi Baterai (BESS), Sistem Surya Off-Grid, Solusi Penyimpanan Energi Rumah. |
Jangan ragu untuk menghubungi kami untuk informasi lebih lanjut, terima kasih!
