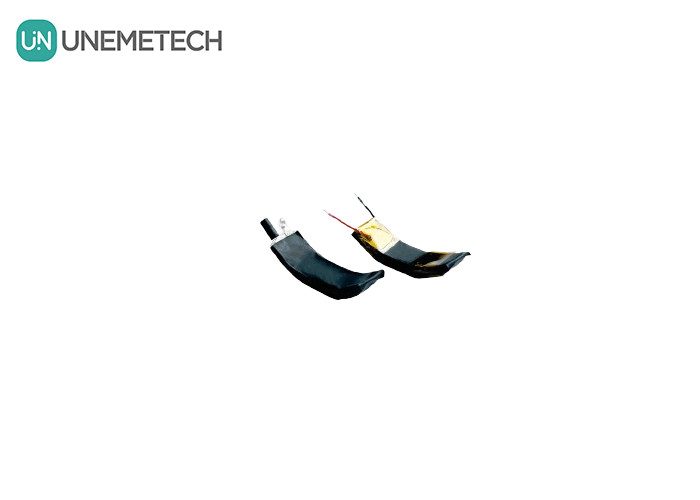

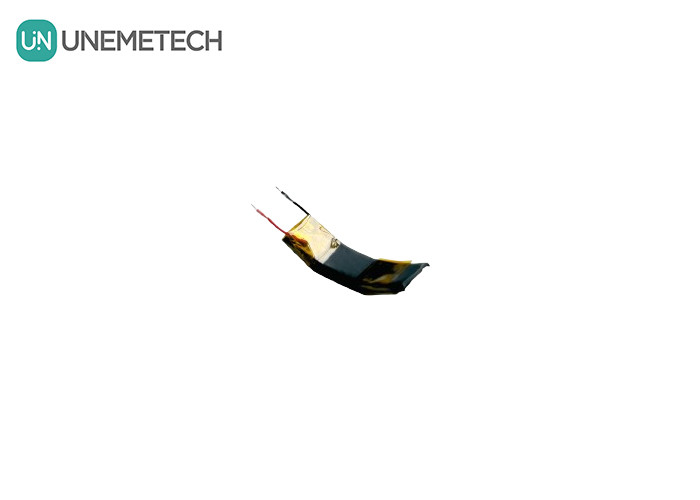

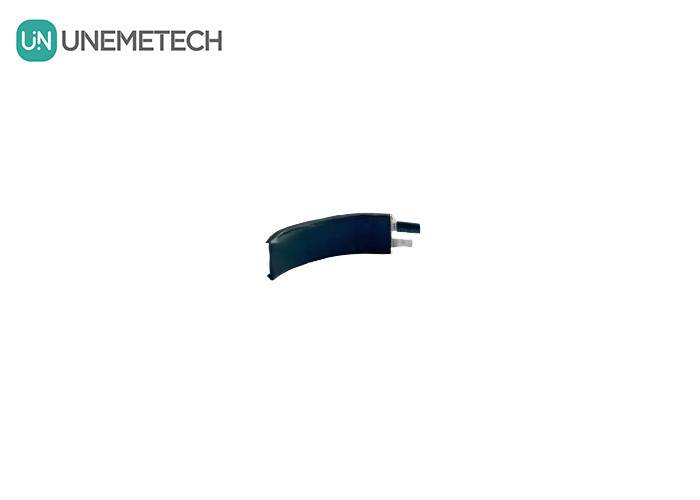

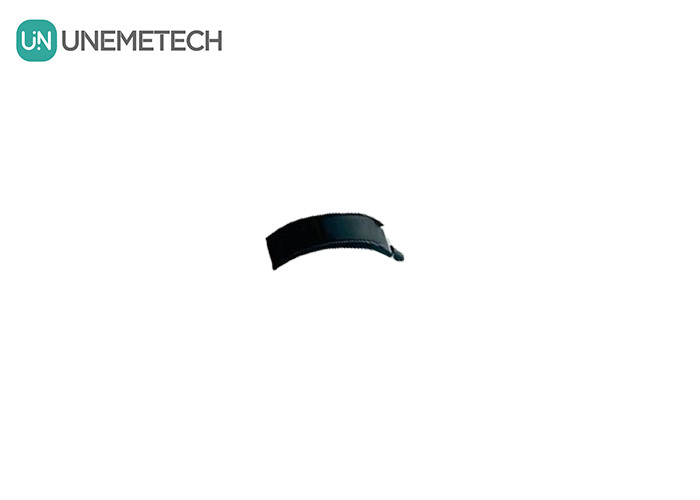

220726 3.7V 27mAh Baterai Smart Ring melengkung Baterai Smart Wearable
| Battery Type: | Baterai LiPo melengkung | Nominal Voltage: | 3.7V |
| Nominal Capacity: | 27mAh | Charge Ending Voltage: | 4.2V |
| Discharge Ending Voltage: | 3.0V | Max Charge/Discharge Current: | 1.0C(27mA) |
| Cell Impedance (V=3.9-4.0V): | ≤1600mΩ | Operating Temperature: | Pengisian daya: 0-45℃ / Debit: -20-60℃ |
| Maximum Cell Dimension: | T:2.2mm L:7.0mm L:27.5mm | Cycle Life: | ≥500 siklus |
| High Light: | Baterai Smart Ring melengkung,3.7V 27mAh Smart Ring Baterai,Baterai Pakai Pintar melengkung |
||
220726 3.7V 27mAh Baterai melengkung Smart Ring Baterai Lithium Polimer melengkung Baterai Smart Wearable Baterai
Fitur RingkasanSmart Ring Baterai
1Berbagai ukuran: ukuran dan kapasitas untuk dipilih, aplikasi yang kuat
2Penjaminan mutu: menggunakan produk sel, kapasitas tinggi, resistensi internal rendah
3Kinerja yang stabil: Umur Siklus yang panjang: pengisian dan pelepasan terus menerus 500 kali, kapasitas baterai tidak kurang dari 80% dari kapasitas nominal.
4. Tidak ada efek memori: dapat diisi dan dilepaskan kapan saja
5. Keamanan Tinggi: Dibangun-in Papan Perlindungan Sirkuit, dengan sirkuit pendek, overcharge, over-discharge, dampak, getaran, akupunktur, suhu tinggi dan negara lain, tidak ada api, tidak ada ledakan dan sebagainya.
PenerapanSmart Ring Baterai
Kebugaran olahraga: jam tangan olahraga, gelang olahraga, aksesori, helm peringatan berkilau, dll. .
Perawatan Kesehatan: menyediakan tekanan darah, detak jantung dan tanda-tanda medis lainnya dari deteksi dan pengobatan, bentuk yang lebih beragam, termasuk monitor tekanan darah gaya lengan, memakai monitor oksigen darah,monitor telapak tangan, memakai EKG single-lead, dll .
Elektronik konsumen: Jam tangan pintar, kacamata pintar, stereo WIFI, proyektor multi-tutup yang dapat dipakai, sepatu pengisi daya, pakaian kebugaran, sepatu navigasi, sepatu LED dan sebagainya.
Parameter teknis dariSmart Ring Baterai
| Model | 220726 |
| Ukuran produk | 2.2mm*7.0mm*27.5mm(K tebal*lebar*panjang) |
| Tegangan Nominal | 3.7V |
| Kapasitas Minimal | 27mAh |
| Tegangan Pengisian | 4.2V |
| Tegangan pemotongan debit | 3.0V |
| AC Impedansi Resistensi | ≤ 1600mΩ |
| arus muatan standar | 5.4mA ((0.2C) |
| Maks. arus muatan terus menerus | 27mA ((1C) |
| arus debit standar | 5.4mA ((0.2C) |
| Max.aliran pelepasan terus menerus | 27mA ((1C) |
| Berat badan | Sekitar 1.0g |
| Suhu operasi | muatan:0~+45°C/pengurangan:- 20~+60°C |
| Suhu penyimpanan |
kurang dari 3 bulan:- 20~+35°C Kapasitas pemulihan>90% kurang dari 12 bulan:- 20~+30°C Kapasitas pemulihan>85% |
| Model | Min Kapasitas ((mAh) | Ketebalan ((mm) | Lebar ((mm) | Panjang ((mm) | Warna | Perhatikan |
| 150724 | 14 | 1.5 | 7 | 24 | Perak/ Hitam | kelengkungan dan ketebalan dapat disesuaikan, lebar dan panjang kustom membutuhkan cetakan baru |
| 150726 | 16 | 1.5 | 7 | 26 | Perak/ Hitam | |
| 150728 | 18 | 1.5 | 7 | 28 | Perak/ Hitam | |
| 150730 | 20 | 1.5 | 7 | 30 | Perak/ Hitam | |
| 170724 | 18 | 1.7 | 7 | 24 | Perak/ Hitam | |
| 170726 | 20 | 1.7 | 7 | 26 | Perak/ Hitam | |
| 170728 | 22 | 1.7 | 7 | 28 | Perak/ Hitam | |
| 170730 | 24 | 1.7 | 7 | 30 | Perak/ Hitam |
|
|
||||||
*** Silakan hubungi kami untuk informasi lebih rinci dan sampel gratis***
